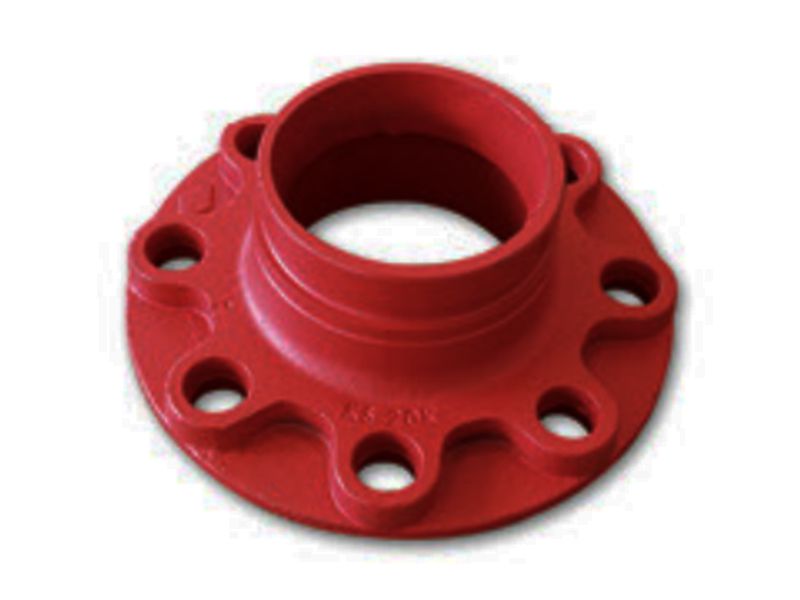

Grooved KS Adaptor Flange
Request a Quote

A grooved KS adaptor flange is a flange that is welded with a circular pipe, enhancing its stiffness and load-bearing capacity. It allows for changes in direction and adapts to different sizes or components.

Recommended Applications

The grooved KS adaptor flange is well-suited for various industries, including boiler pressure vessels, petroleum, chemical, shipbuilding, pharmaceutical, and others. It is commonly used in oil and gas transportation pipeline systems, chemical pipeline systems, and similar applications.

Certification
Certification
Certification
Certification
Key Specifications
  • Available sizes
    Available sizes: 1 inch~12 inch |DN25~DN300
  • Working pressure
    Working pressure: 300PSI/2.07MPa
  • Certificate
    Certificate: FM / UL /CE certified
  • Coating
    Coating: epoxy / galvanized
  • Color
    Color: red/orange/white etc.
Specifications
Nominal Size Pipe OD. Dimensions mm/in Bolt Size
mm/in mm/in L mm/in X mm/in Y mm/in Z mm/in No.-Size mm
50 / 2 60.3 / 2.375 64 / 2.52 165 / 6.02 125 / 4.92 19 / 0.75 4-Φ16
65 / 2 1/2 73 / 2.875 60 / 2.36 185 / 6.89 145 / 5.71 16 / 0.63 4-Φ 16
65 / 2 1/2 76.1 / 3 50 / 1.97 185 / 6.89 145 / 5.71 13 / 0.51 4-Φ 16
80 / 3 88.9 / 3.5 60 / 2.36 200 / 7.48 160 / 6.3 13 / 0.51 8-Φ16
100 / 4 108 / 4.25 70 / 2.76 220 / 8.27 180 / 7.09 18 / 0.71 8-Φ16
100 / 4 114.3 / 4.5 70 / 2.76 220 / 8.58 180 / 7.09 18 / 0.71 8-Φ16
125 / 5 133 / 5.25 70 / 2.76 250 / 8.58 210 / 7.09 18 / 0.71 8-Φ16
125 / 5 139.7 / 5.5 70 / 2.76 250 / 8.58 210 / 7.09 18 / 0.71 8-Φ16
150 / 6 159 / 6.25 70 / 2.76 285 / 11.1 240 / 9.44 18 / 0.71 8-Φ20
150 / 6 165.1 / 6.5 70 / 2.76 285 / 11.1 240 / 9.44 18 / 0.71 8-Φ20
150 / 6 168.3 / 6.625 70 / 2.76 285 / 11.1 240 / 9.44 19 / 0.75 8-Φ20
200 / 8 219.1 / 8.625 80 / 3.15 340 / 13.11 295 / 11.61 19 / 0.75 12-Φ20
250 / 10 273 / 10.75 80 / 3.15 405 / 15.63 355 / 13.98 18 / 0.71 12*M24
