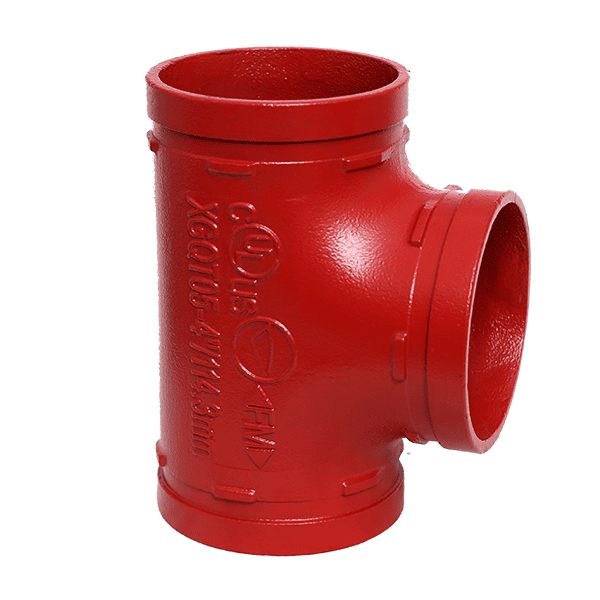

Grooved Equal Tee
  • Grooved Equal Tee
  • Grooved Equal Tee
    • Request a Quote

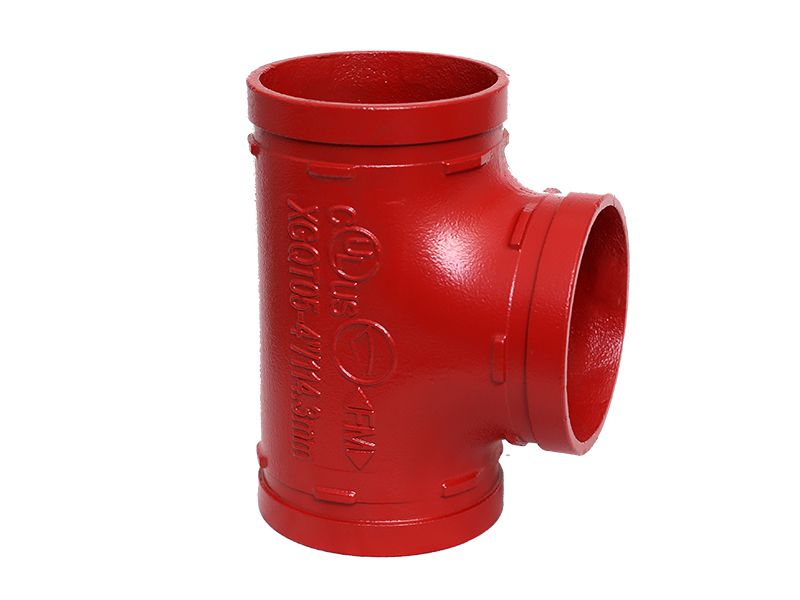

    Grooved equal tee has the same size for both the main and branch pipes, with the branch pipe perpendicular to the main pipe. The grooved ends are connected to the pipe using couplings for fluid distribution to provide the change in direction, and adapt sizes or components.

    Recommended Applications

    Grooved equal tee is suitable for liquid and gas transport systems such as water, air, and oil piping systems.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN300
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    • Color
      Color: red/orange/white, etc.
    • Material
      Material: ductile iron
    Specifications

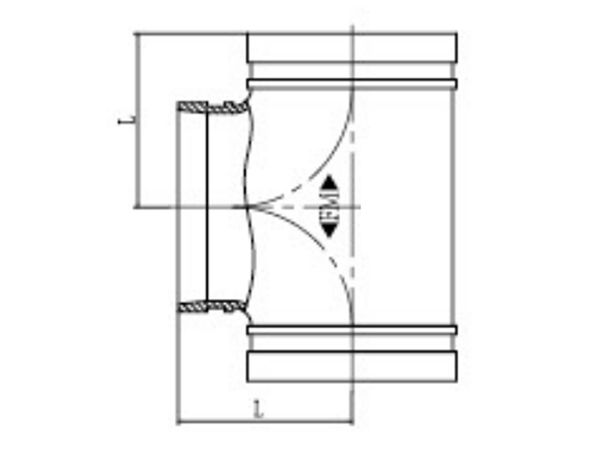

    Nominal size Pipe OD. Dimensions
    mm/in mm/in L mm/in
    25 / 1 33.7 / 1.327 57 / 2.24
    32 / 1 1/4 42.4 / 1.669 60 / 2.36
    40 / 1 1/2 48.3 / 1.9 60 / 2.36
    50 / 2 60.3 / 2.375 70 / 2.76
    65 / 2 1/2 73 / 2.875 76 / 2.99
    65 / 2 1/2 76.1 / 3 76 / 2.99
    80 / 3 88.9 / 3.5 86 / 3.39
    100 / 4 108 / 4.25 102 / 4.02
    100 / 4 114.3 / 4.5 102 / 4.02
    125 / 5 133 / 5.25 121 / 4.76
    125 / 5 139.7 / 5.5 121 / 4.76
    125 / 5 141.3 / 5.563 121 / 4.76
    150 / 6 159 / 6.25 140 / 5.51
    150 / 6 165.1 / 6.5 140 / 5.51
    150 / 6 168.3 / 6.625 140 / 5.51
    200 / 8 219.1 / 8.625 175 / 6.89
    250 / 10 273 / 10.75 215 / 8.46
    What are the advantages of a grooved tee?
    A grooved tee offers easy installation and maintenance, excellent adaptability, and can be used for a variety of fluid transport applications.

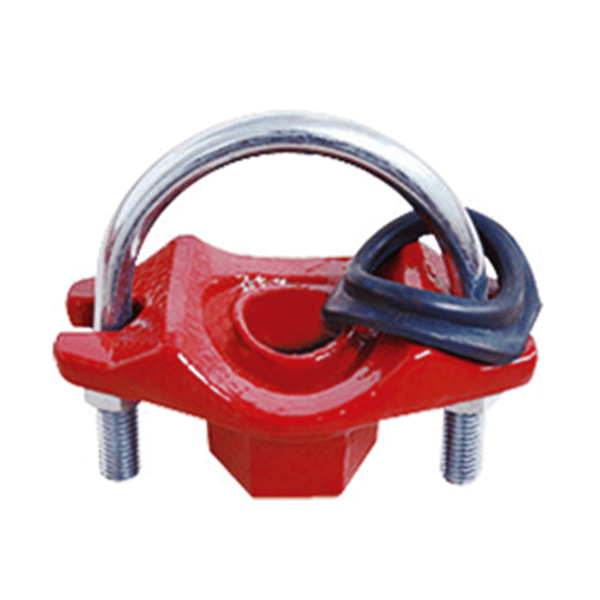

    What is the difference between a mechanical tee and a grooved tee?
    Both mechanical tee and grooved tee are pipe fittings used for pipe connecting. A mechanical tee requires threading or welding connections and needs anti-corrosion treatment. A grooved tee offers easy installation and maintenance, without the need for additional anti-corrosion treatment.
