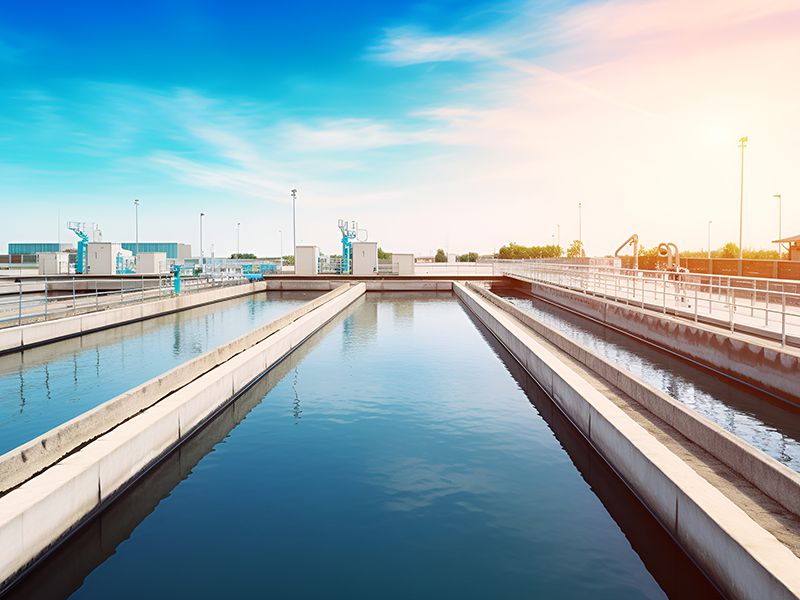

Grooved Pipe Fittings for Drinking Water Plant

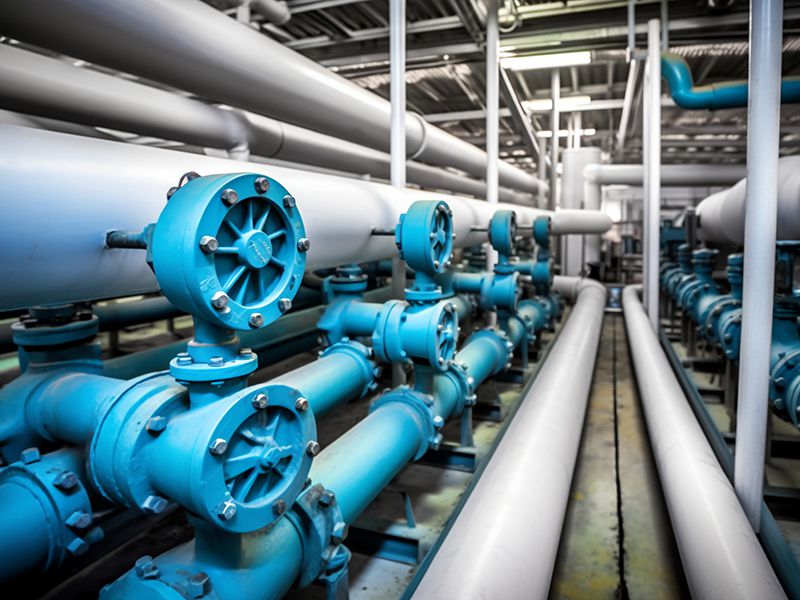

Grooved piping system offers a reliable and sustainable solution for drinking water supply projects

The design, construction, usage, pipe replacement, and project expansion of conventional water supply systems face significant challenges.

The utilization of traditional welding or flange connections for pipelines poses construction difficulties due to various constraints, leading to extended construction periods and complications in pipe replacement and expansion.

Grooved connections effectively solve these challenges encountered with traditional pipe connections

Quick installation: minimal tools are required for the installation of drinking water supply pipelines, resulting in reduced construction time and costs.
Greater flexibility: grooved connections can accommodate pipes of different sizes, enabling the realization of water supply pipelines of varying scales.
Convenient maintenance: there is no need for cutting or re-welding for replacing or cleaning pipes, and manual tools are sufficient.
Grooved piping system ensures easier expansion possibilities.

Overall, the adoption of a grooved piping system provides a practical solution for the challenges faced in the design, construction, maintenance, and expansion of water supply systems.

Recommended Pipe Couplings & Fittings

1. View More
2. Grooved Rigid Coupling Grooved rigid coupling is a pipe fitting used to connect two pipes or equipment in various applications. It offers easy and fast installation without the need for any special tools or skills.

  Available sizes: 1~12 inch | DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Concentric Reducer Grooved concentric reducers are cone-shaped pipe fittings with grooved connections that reduce the size of a pipeline in a symmetrical and concentric manner, while keeping the centerlines of the two pipes aligned.

  Available sizes: 1 1/4×1 inch~12×10 inch |DN32×25~DN300×250

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Mechanical Tee Grooved Outlet Mechanical tee grooved outlet consist of upper and lower plates, a gasket, and bolts/nuts, providing a simple and fast method for branch connection.

  Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Equal Tee The grooved ends are connected to the pipe using couplings for fluid distribution to provide the change in direction, and adapt sizes or components.

  Available sizes: 1 inch~12 inch |DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Equal Cross Grooved equal cross features convenient and quick connections utilizing a coupling. Simply insert the pipe into the coupling and tighten the bolts.

  Available sizes: 2 inch~8 inch |DN50~DN200

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved 90° Elbow Grooved 90°elbow is an elbow fitting that is used for connecting two pipes with the same size to make the pipeline turn 90 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

  Available sizes: 1 1/4×1 inch~8×6 inch |DN32×25~DN200×150

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved Adaptor Flange A grooved adaptor flange is an adjustable connecting flange that functions similarly to an expansion joint. It consists of two flange discs that are individually fixed, with a flange gasket placed between them.

  Available sizes: 1 inch~12 inch |DN25~DN300

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
1. View More
2. Grooved End Cap A grooved end cap is specifically designed to be fitted onto the end of a pipe using a grooved connection. It serves as an isolation or cutoff device to block the pipeline and form liquid or gas tight seal.

  Available sizes: 1 inch~12 inch |DN25~DN600

  Working pressure: 300 PSI

  Certificate: FM/UL/CE certified
