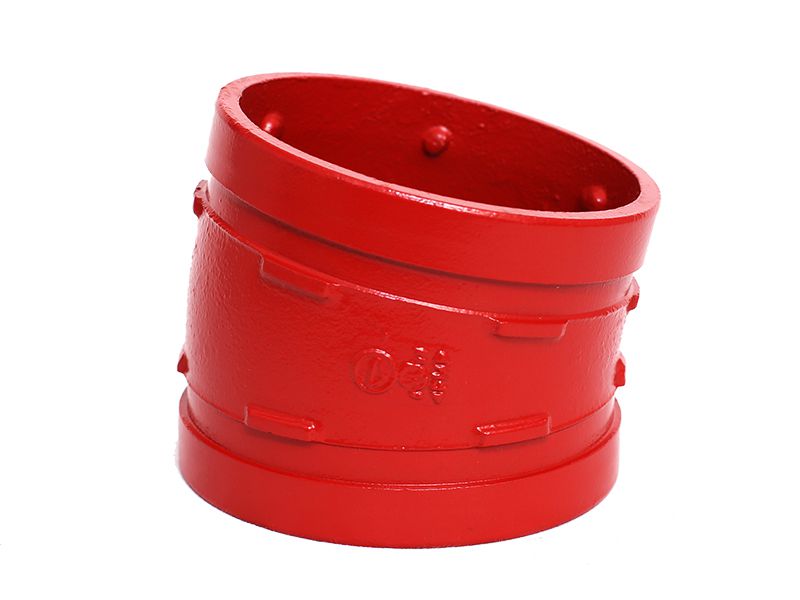

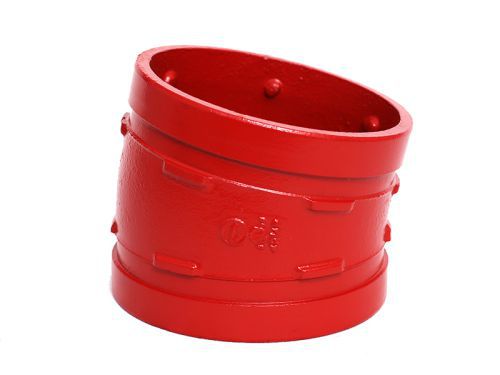

Grooved 11.25° Elbow
  • Grooved 11.25° Elbow
  • Grooved 11.25° Elbow
    • Request a Quote

    Grooved 11.25°elbow is a pipe fitting that is used to connect two pipes with the same size so as to make the pipeline turn 11.25 degrees for changing the flow direction. This grooved elbow facilitates the adaptation of sizes or components.

    Recommended Applications

    Grooved 11.25° elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN600
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM / UL /CE certified
    • Coating
      Coating: epoxy /galvanized
    • Color
      Color: red/orange/white etc.
    Specifications
    Nominal Size Pipe OD. Dimensions
    mm/in mm/in L mm/in
    50 / 2 60.3 / 2.375 35 / 1.38
    65 / 2 1/2 73 / 2.875 38 / 1.5
    65 / 2 1/2 76.1 / 3.000 38 / 1.5
    80 / 3 88.9 / 3.5 40 / 1.57
    100 / 4 108 / 4.25 44 / 1.73
    100 / 4 114.3 / 4.5 44 / 1.73
    150 / 6 159 / 6.25 50 / 1.97
    150 / 6 165.1 / 6.5 50 / 1.97
    150 / 6 168.3 / 6.625 50 / 1.97
    200 / 8 219.1 / 8.625 50 / 1.97
