Grooved Lateral Tee
  • Grooved Lateral Tee
  • Grooved Lateral Tee
    • Request a Quote

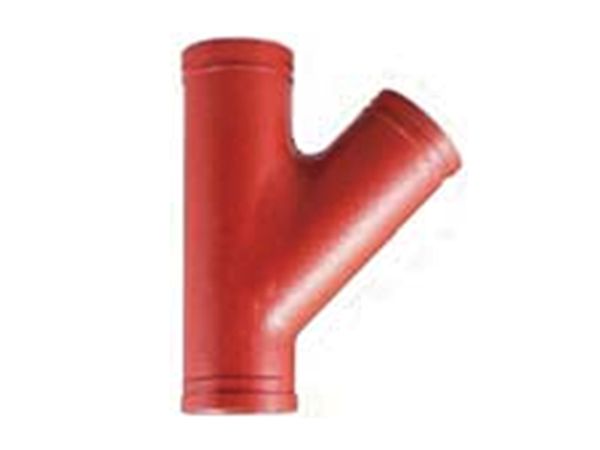

    Grooved lateral tee is a type of tee fitting with a specified angle between the branch pipe and the main pipe, allowing for a change in the direction of the main pipe.

    Recommended Applications
    • Grooved lateral tee is suitable for piping systems in industries such as firefighting, marine, oil and gas transportation, petrochemical industry, industrial piping, water supply and drainage engineering, and more.
    • Connects pipe, provides the change in direction, and accommodates to sizes or components.
    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN300
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy /galvanized
    • Color
      Color: red/orange/white, etc.
    Specifications

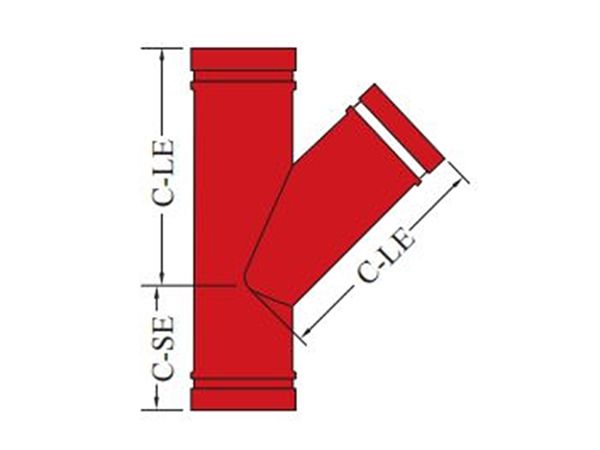

    Nominal Size Pipe O.D. C-LE C-SE
    mm/in mm/in mm/in mm/in
    50 / 2 60.3 / 2.375 178 7.00 70 / 2.75
    65 / 2 1/2 73 / 2.875 197 7.75 76 / 3.00
    65 / 2 1/2 76.1 / 3 197 7.75 76 / 3.00
    80 / 3 88.9 / 3.5 216 8.50 83 / 3.25
    100 / 4 114.3 / 4.5 267 10.50 95 / 3.75
    125 / 5 133 / 5.25 318 12.50 102 / 4.00
    125 / 5 139.7 / 5.5 318 12.50 102 / 4.00
    150 / 6 165.1 / 6.5 356 14.00 114 / 4.50
    200 / 8 219.1 / 8.625 457 18.00 152 / 6.00
    250 / 10 273 / 10.75 521 20.50 165 / 6.50
    300 / 12 323.9 / 12.75 584 23.00 178 / 7.00
