Grooved Long Radius 90° Elbow
  • Grooved Long Radius 90° Elbow
  • Grooved Long Radius 90° Elbow
    • Request a Quote

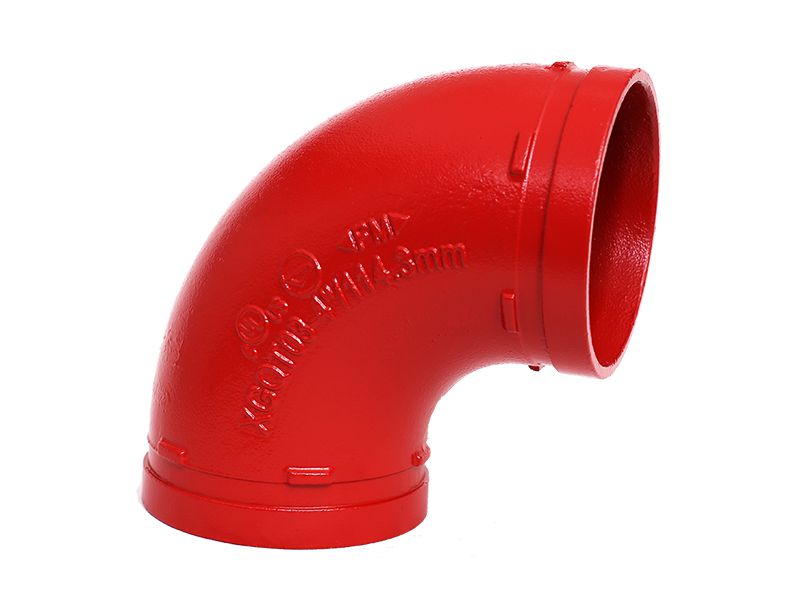

    Grooved long radius 90° elbow is used for connecting two pipes with the same size to make the pipeline turn 90 degrees for changing in flow direction. This elbow also adapts sizes or components.

    Recommended Applications

    Grooved long radius 90° elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN300
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM / UL /CE certified
    • Coating
      Coating: epoxy /galvanized
    • Color
      Color: red/orange/white etc.

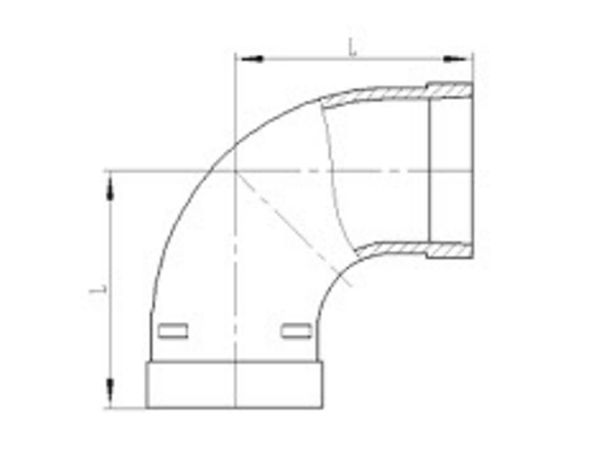

    Specifications
    Nominal Size Pipe OD Dimensions
    mm/in mm/in mm
    25 / 1 33.7 / 1.327 57 / 2.24
    32 / 1 1/4 42.4 / 1.669 60 / 2.36
    40 / 1 1/2 48.3 / 1.9 60 / 2.36
    50 / 2 60.3 / 2.375 70 / 2.76
    65 / 2 1/2 73 / 2.875 76 / 2.99
    65 / 2 1/2 76.1 / 3 76 / 2.99
    80 / 3 88.9 / 3.5 80 / 3.15
    100 / 4 108 / 4.25 102 / 4.02
    100 / 4 114.3 / 4.5 96 / 3.78
    125 / 5 133 / 5.25 121 / 4.76
    125 / 5 139.7 / 5.5 121 / 4.76
    125 / 5 141.3 / 5.563 121 / 4.76
    150 / 6 159 / 6.25 140 / 5.51
    150 / 6 165.1 / 6.5 122 / 4.8
    150 / 6 168.3 / 6.625 140 / 5.51
    200 / 8 219.1 / 8.625 150 / 5.91
    250 / 10 273 / 10.75 215 / 8.46
    300 / 12 323.9 / 12.75 245 / 9.65
