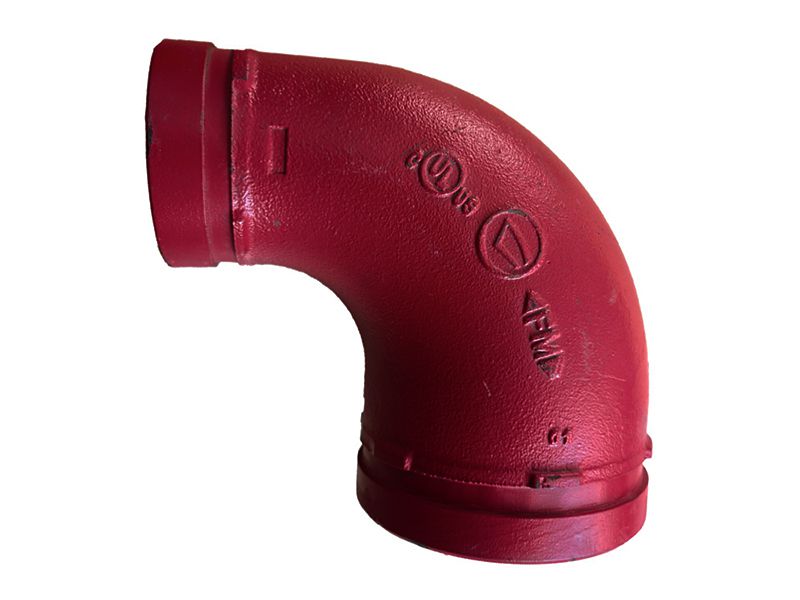

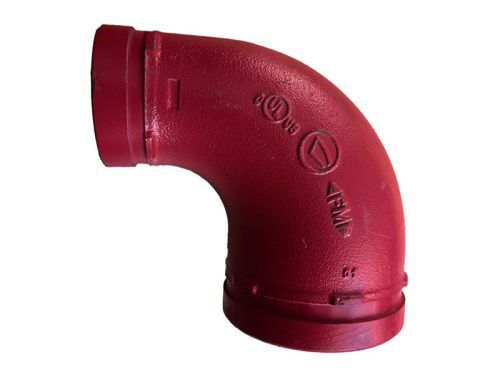

    Grooved 90° reducing elbow is an elbow fitting for connecting two pipes of different sizes to make the pipeline turn 90 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

    Recommended Applications

    Grooved 90° reducing elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 1/4×1 inch~12×10 inch |DN32×25~DN300×250
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM / UL /CE certified
    • Coating
      Coating: epoxy /galvanized
    • Color
      Color: red/orange/white etc.

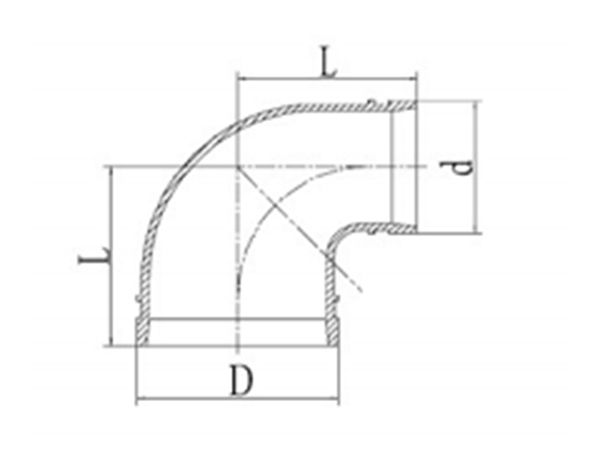

    Specifications
    Nominal Size Pipe O.D. Dimension
    mm/in mm/in Lmm
    32*25 / 1 1/4*1 42.4*33.7 / 1.66*1.327 7O
    40*25 / 1 1/2*1 48.3*33.7 / 1.9*1.327 7O
    40*32 / 1 1/2*1 1/4 48.3*42.4 / 1.9*1.66 7O
    50*25 / 2*1 60.3*33.7 / 2.375*1.327 83
    50*32 / 2*1 1/4 60.3*42.4 / 2.375*1.66 83
    60*40 / 2 *1 1/2 60.3*48.3 / 2.375*1.9 83
    65*25 / 2 1/2*1 76.1*Rc1 / 3*1.327 95
    65*32 / 2 1/2*1 1/4 76.1*42.4 / 3*1.66 95
    65*40 / 2 1/2*1 1/2 76.1*48.3 / 3*1.9 95
    65*50 / 2 1/2*2 76.1*60.3 / 3*2.375 95
    80*25 / 3*1 88.9*33.7 / 3.5*1.927 108
    80*32 / 3*1 1/4 88.9*42.4 / B.5*1.68 108
    80*40 / 3*1 1/2 88.9*48.3 / 3.5*1.9 108
    80*50 / 3*2 88.9*60.3 / 3.5*2.375 108
    80*65 / 3*2 1/2 88.9*76.1 / 3.5*3 108
    100*65 / 4*2 1/2 114.3*76.1 / 4.5*3 127
    100*80 / 4*3 114.3*88.9 / 4.5*3.5 127
    150*100 / 6*4 165.1*114.3 / 6.5*4.5 165
    150*100 / 6*4 168.3*114.3 / 6.625*4.5 165
