Grooved Eccentric Reducer
  • Grooved Eccentric Reducer
  • Grooved Eccentric Reducer
    • Request a Quote

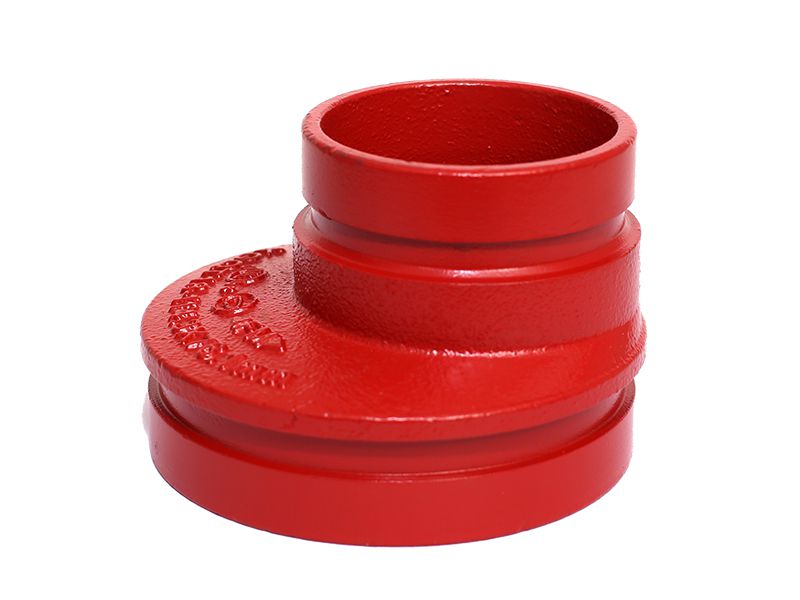

    Grooved eccentric reducers are cone-shaped pipe fittings with grooves for connection, which reduce the size of the pipeline in an eccentric manner. This product achieves mechanical coupling by using a set of grooves at the ends of the pipes and fittings. Typically, a specialized tool is used to cut a groove at the pipe end, and then the joint is clamped onto the groove using bolts or a similar mechanism.

    Features
    • Grooved eccentric reducers are made of ductile iron, stainless steel, or carbon steel, offering strong wear resistance and corrosion resistance.
    • Available in various sizes and pressure ratings, suitable for different applications.
    • Enables the connection of two pipes with different diameters.
    • Connects pipes to provide changes in direction and adapt sizes or components.
    Recommended Applications

    Grooved eccentric reducers are commonly used in industrial and commercial piping systems, such as gas pipelines, water supply pipelines, etc., where the size of the pipeline needs to be reduced to accommodate changes in flow or pressure.

    Certification
    Certification
    Certification
    Certification
    Key Specifications

    Connects pipe, provides change in direction and adapts sizes or components

    • Available sizes
      Available sizes: 1 1/4×1 inch~12×4 inch |DN32×25~DN300×100
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    • Color
      Color: red/orange/white
    • Material
      Material: ductile iron
    Specifications
    Nominal Size Pipe OD Dimensions
    mm/in mm/in L mm/in
    32x25 / 1 1/4x1 42.4x33.7 / 1.660x1.315 64 / 2.51
    40x25 / 11/2x1 48.3x33.7 / 1.900x1.315 64 / 2.51
    40x32 / 1 1/2×1 1/4 48.3x42.4 / 1.900x1.660 64 / 2.51
    50x25 / 2x1 60.3 x 33.7 / 2.375x1.315 64 / 2.51
    50x32 / 2x1 1/4 60.3x42.4 / 2.375x1.660 64 / 2.51
    50x40 / 2x1 1/2 603x48.3 / 2.375x1.900 64 / 2.51
    65x25 / 2 1/2x1 73.0 x 33.7 / 2.875x1.315 64 / 2.51
    65x32 / 2 1/2x1 1/4 73.0x42.4 / 2.875x1.660 64 / 2.51
    65x40 / 2 1/2x1 1/2 73.0x48.3 / 2.875x1.900 64 / 2.51
    65x50 / 2 1/2x2 73.0 x 60.3 / 2.875x2.375 64 / 2.51
    65x32 / 2 1/2x1 1/4 76.1 x 42.4 / 3.000x1.660 64 / 2.51
    65x40 / 2 1/2x1 1/2 76.1x48.3 / 3.000x1.900 64 / 2.51
    65x50 / 2 1/2x2 76.1x60.3 / 3.000 x 2.375 64 / 2.51
    80x32 / 3x1 1/4 88.9x42.4 / 3.500x1.660 55 / 2.17
    80x40 / 3x1 1/2 88.9 x 48.3 / 3.500x1.900 55 / 2.17
    80x50 / 3x2 88.9 x 60.3 / 3.500x2.375 55 / 2.17
    80x65 / 3x2 1/2 88.9x76.1 / 3.500 x 3.000 55 / 2.17
    100x65 / 4x2 1/2 108.0 x 76.1 / 4.250 x 3.000 76 / 2.99
    100x80 / 4x3 108.0x88.9 / 4.250 x 3.500 76 / 2.99
    100x32 / 4x1 1/4 114.3x42.4 / 4.500x1.660 60 / 2.36
    100x40 / 4x1 1/2 114.3x48.3 / 4.500x1.900 60 / 2.36
    100x50 / 4x2 114.3x60.3 / 4.500x2.375 60 / 2.36
    100x65 / 4x2 1/2 114.3x76.1 / 4.500 x 3.000 60 / 2.36
    100x80 / 4x3 114.3x88.9 / 4.500 x 3.500 60 / 2.36
    125x50 / 5x2 139.7x60.3 / 5.500x2.375 65 / 2.56
    125x65 / 5x2 1/2 139.7x76.1 / 5.500 x 3.000 65 / 2.56
    125x80 / 5x3 139.7x88.9 / 5.500 x 3.500 65 / 2.56
    125x100 / 5x4 139.7x114.3 / 5.500 x 4.500 65 / 2.56
    150x50 / 6x2 159.0x60.3 / 6.250x2.375 70 / 2.76
    150x65 / 6x2 1/2 159.0x76.1 / 6.250 x 3.000 70 / 2.76
    150x80 / 6x3 159.0x88.9 / 6.250 x 3.500 70 / 2.76
    150x100 / 6x4 159.0x108.0 / 6.250 x 4.250 70 / 2.76
    150x100 / 6x4 159.0x114.3 / 6.250x4.500 70 / 2.76
    150x125 / 6x5 159.0x133.0 / 6.250x5.250 70 / 2.76
    150x125 / 6x5 159 0x139 7 / 6.250 x 5.500 70 / 2.76
    150x50 / 6x2 165.1 x60.3 / 6.500 x 2.375 102 / 4.01
    150x65 / 6x2 1/2 165.1x76.1 / 6.500 x 3.000 102 / 4.01
    150x80 / 6x3 165.1x88.9 / 6.500 x 3.500 102 / 4.01
    150x100 / 6x4 165.1x114.3 / 6.500x4.500 102 / 4.01
    150x125 / 6x5 165.1x139.7 / 6.500x5.500 102 / 4.01
    150x50 / 6x2 168.3 x 60.3 / 6.625x2.375 70 / 2.76
    150x65 / 6x2 1/2 168.3x76.1 / 6.625 x 3.000 70 / 2.76
    150x80 / 6x3 168.3 x 88.9 / 6.625x3.500 70 / 2.76
    150x100 / 6x4 168.3x114.3 / 6.625x4.500 70 / 2.76
    150x125 / 6x5 168.3x139.7 / 6.625 x 5.500 70 / 2.76
    200 x 50 / 8x2 219.1x60.3 / 8.625x2.375 85 / 3.35
    200x65 / 8x2 1/2 219.1x76.1 / 8 625x3.000 85 / 3.35
    200 x 80 / 8x3 219.1x88.9 / 8.625x3.500 85 / 3.35
    200x100 / 8x4 219.1 x 108.0 / 8.625x4.250 85 / 3.35
    200x100 / 8x4 219.1 x 114.3 / 8.625x4.500 85 / 3.35
    200x125 / 8x5 219.1 x 139.7 / 8.625 x 5.500 85 / 3.35
    200x150 / 8x6 219.1 x 159.0 / 8.625x6.250 85 / 3.35
    200x150 / 8x6 219.1 x 165.1 / 8.625x6.500 85 / 3.35
    200x150 / 8x6 219.1 x 168.3 / 8.625x6.625 85 / 3.35
    Which method allows for the quick installation of a piping system?
    Grooved pipe fittings make fast installation possible, offering ease of use and low maintenance costs. If you are looking for a better way to connect pipes, grooved fitting is an ideal method.
    Why is grooved pipe joining becoming increasingly popular in piping construction?
    Grooved pipe joining provides high stability and seismic resistance to piping systems, as well as reduces piping construction time and mitigates the risks that often occur during installation. Therefore, grooved pipe joining has become a highly favored method in pipeline construction projects.
