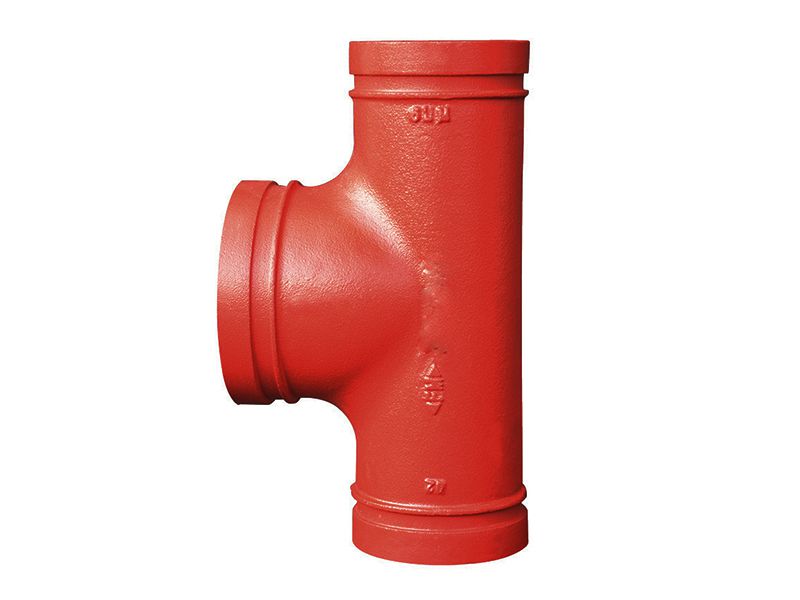

Grooved Bullhead Tee
  • Grooved Bullhead Tee
  • Grooved Bullhead Tee
    • Request a Quote

    Grooved bullhead tee is a type of tee fitting where the size of branch pipe is larger than the main pipe. This grooved tee is used to connect pipes, change the directions of pipeline, and adjust the size of components.

    Recommended Applications

    Grooved bullhead tee is suitable for piping systems in industries such as chemical, petroleum, natural gas, water supply and gas supply, heat transfer, and more, such as chemical piping systems, deep-sea oil well piping systems, and more.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN300
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy /galvanized
    • Color
      Color: red/orange/white, etc.
    Specifications

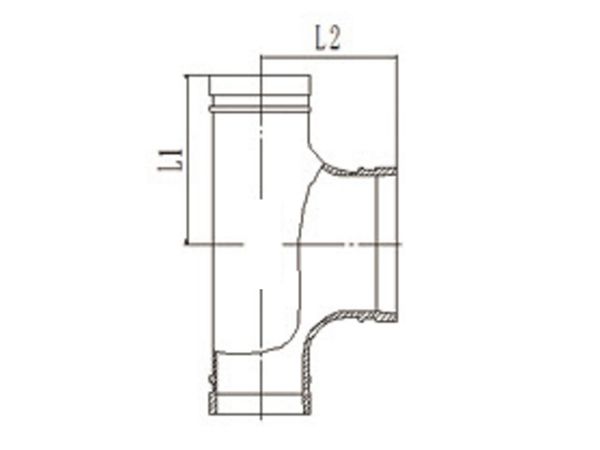

    Nominal Size Pipe O.D. mm/in Dimension mm
    L1 L2
    mm/in mm/in mm/in mm/in
    50*50*65 / 2*2*2 1/2 60.3*60.3*73 / 2.375*2.375*2.875 95 83
    50*50*80 / 2*2*3 60.3*60.3*88.9 / 2.375*2.375*3.5 108 95
    50*50*100 / 2*2*4 60.3*60.3*114.3 / 2.375*2.375*4.5 127 102
    65*65*80 / 2 1/2*2 1/2*3 73*73*88.9 / 2.875*2.875*3.5 108 95
    65*65*100 / 2 1/2*2 1/2*4 73*73*114.3 / 2.875*2.875*4.5 127 102
    65*65*80 / 2 1/2*2 1/2*3 76*76*88.9 / 3*3*3.5 108 95
    65*65*100 / 2 1/2*2 1/2*4 76*76*114.3 / 3*3*4.5 127 102
    80*80*100 / 2 1/2*2 1/2*4 88.9*88.9*114.3 / 2.875*2.875*4.5 127 102
    100*100*150 / 4*4*6 114.3*114.3*150 / 4.5*4.5*6.625 165 127
    125*125*200 / 5*5*8 141.3*141.3*219.1 / 5.563*5.563*8.625 197 140
    150*150*200 / 6*6*8 168.3*168.3*219.1 / 6.625*6.625*8.625 197 165
