Mechanical Tee Threaded Outlet
  • Mechanical Tee Threaded Outlet
  • Mechanical Tee Threaded Outlet
  • Mechanical Tee Threaded Outlet
    • Request a Quote

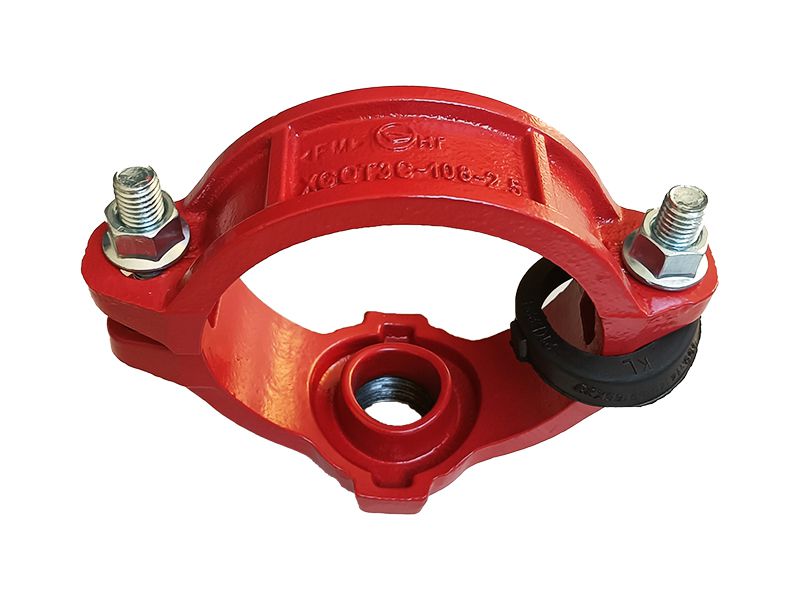

    Mechanical tees threaded outlet consist of upper and lower housings, a gasket, and bolts/nuts, providing a simple and fast method for branch connection. The self-sealing structure of the gasket ensures permanent sealing. During field operations, mechanical tees can be tightly installed on the pipeline to ensure the accuracy of the branch outlet connection.

    Features
    • Mechanical tees threaded outlet provides an additional threaded outlet in existing piping.
    • For new construction, the mechanical tee provides a way to bypass the use of a reducing tee.
    • The mechanical tee may be easily converted into a cross when necessary.
    Recommended Applications

    Mechanical tees threaded outlet is suitable for piping systems, such as fire protection piping and sprinkler piping systems.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    • Material
      Material: ductile iron
    Specifications
    Nominal Size Pipe OD Hole Dia Dimensions Bolt Size
    mm/in mm/in Hole Cutting Measurement mm/in No.-Size / mm

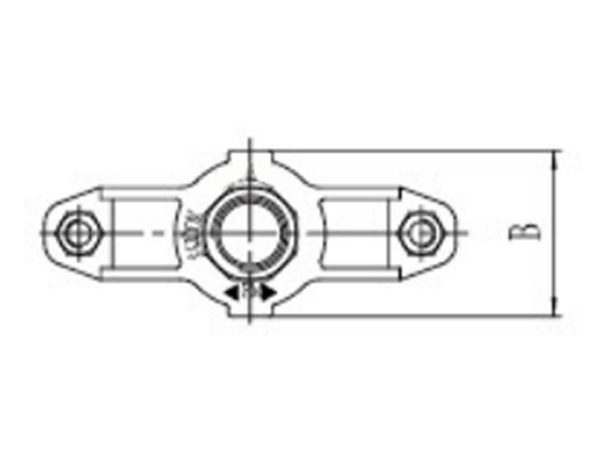

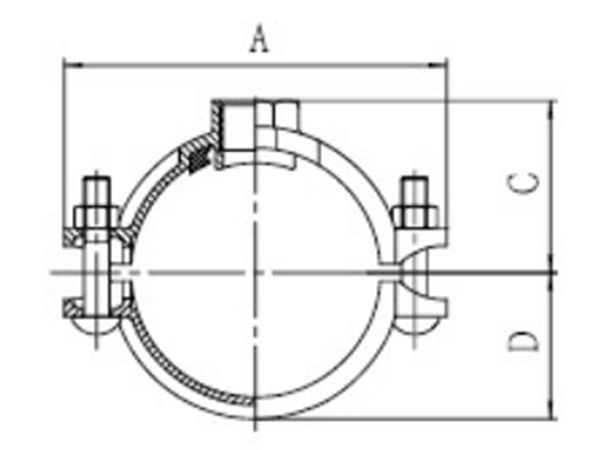

    A / mm B / mm C / mm D / mm
    50×15 / 2×1/4 60x21 / 2.375×0.827 38 / 1.5 118 / 4.64 74 / 2.91 55 / 2.17 40 / 1.57 M10×55-2
    50×20 / 2×3/4 60x27 / 2.375×1.063 38 / 1.5 118 / 4.64 74 / 2.91 60 / 2.36 40 / 1.57 M10×55-2
    50×25 / 2×1 60.3×33.7 / 2.375×1.315 38 / 1.5 118 / 4.64 74 / 2.91 60 / 2.36 40 / 1.57 M10×55-2
    50×32 / 2×1 1/4 60.3×42.4 / 2.375×1.660 45 1.77 118 / 4.64 74 / 2.91 60 / 2.36 40 / 1.57 M10×55-2
    50×40 / 2×1 1/2 60.3×48.3 / 2.375×1.900 45 / 1.77 118 / 4.64 74 / 2.91 60 / 2.36 40 / 1.57 M10×55-2
    65×15 / 2 1/2×1/4 73x21 / 2.875×0.827 38 / 1.5 132 / 5.2 74 / 2.91 62 / 2.52 47 / 1.85 M12×70-2
    65×20 / 2 1/2×3/4 73x27 / 2.875×1.063 38 / 1.5 132 / 5.2 74 / 2.91 62 / 2.52 47 / 1.85 M12×70-2
    65×25 / 2 1/2×1 73×33.7 / 2.875×1.315 38 / 1.5 132 / 5.2 74 / 2.91 64 / 2.52 47 / 1.85 M12×70-2
    65×32 / 2 1/2×1 1/4 73×42.4 / 2.875×1.660 51 / 2.01 132 / 5.2 82 / 3.23 64 / 2.52 47 / 1.85 M12×70-2
    65×40 / 2 1/2×1 1/2 73×48.3 / 2.875×1.900 51 / 2.01 132 / 5.2 82 / 3.23 64 / 2.52 47 / 1.85 M12×70-2
    65×50 / 2 1/2×2 73x60 / 2.875×2.375 51 / 2.01 132 / 5.2 84 / 3.23 75 / 2.95 47 / 1.85 M12×70-2
    65×15 / 2 1/2×1/4 76x21 / 3.000×0.827 38 / 1.5 135 / 5.31 72 / 2.83 62 / 2.52 48 / 1.89 M12×70-2
    65×20 / 2 1/2×3/4 76x27 / 3.000×1.063 38 / 1.5 135 / 5.31 72 / 2.83 64 / 2.52 48 / 1.89 M12×70-2
    65×25 / 2 1/2×1 76.1×33.7 / 3.000×1.315 38 / 1.5 135 / 5.31 72 / 2.83 64 / 2.52 48 / 1.89 M12×70-2
    65×32 / 2 1/2×1 1/4 76.1×42.4 / 3.000×1.660 51 / 2.01 135 / 5.31 85 / 3.35 66 / 2.60 48 / 1.89 M12×70-2
    65×40 / 2 1/2×1 1/2 76.1×48.3 / 3.000×1.900 51 / 2.01 135 / 5.31 85 / 3.35 66 / 2.60 48 / 1.89 M12×70-2
    65×50 / 2 1/2×2 76x60 / 3.000×2.375 51 / 2.01 135 / 5.31 84 / 3.23 76 / 2.99 48 / 1.89 M12×70-2
    80×15 / 3×1/2 88.9×21.3 / 3.500×0.825 38 / 1.50 146 / 5.75 74 / 2.91 66 / 2.60 55 / 2.17 M12×70-2
    80×20 / 3×3/4 88.9×26.7 / 3.500×1.050 38 / 1.50 146 / 5.75 74 / 2.91 66 / 2.60 55 / 2.17 M12×70-2
    80×25 / 3×1 88.9×33.7 / 3.500×1.315 38 / 1.18 146 / 5.75 74 / 2.91 70 / 2.76 55 / 2.17 M12×70-2
    80×32 / 3×1 1/4 88.9×42.4 / 3.500×1.660 51 / 2.01 146 / 5.75 86 / 3.39 73 / 2.87 55 / 2.17 M12×70-2
    80×40 / 3×1/2 88.9×48.3 / 3.500×1.900 51 / 2.01 146 / 5.75 86 / 3.39 77 / 3.03 55 / 2.17 M12×70-2
    80x50 / 3x2 88 9 x 60.3 3.500 x 2.375 64 / 2.52 146 / 5.75 96 / 3.78 80 / 3.15 55 / 2.17 M12x70-2
    80x65 / 3x2 1/2 89x76 / 3.500 x 3.000 64 / 2.52 146 / 5.75 99 / 3.90 84 / 3.31 55 / 2.17 M12×70-2
    100x25 / 4x1 108x33.7 4.250x1.315 38 / 1.5 172 / 6.77 72 / 283 76 / 2.99 64 / 2.52 M12x75-2
    100x32 / 4x1 1/4 108.0x42.4 / 4.250x1.660 51 / 2.01 172 / 6.77 82 / 3.23 76 / 2.99 64 / 2.52 M12x75-2
    100x40 / 4x1 1/2 108.0x48.3 / 4.250x1.900 51 / 2.01 172 / 6.77 82 / 3.23 76 / 2.99 64 / 2.52 M12x75-2
    100x50 / 4x2 108.0x60.3 / 4.250x2.375 64 / 2.52 172 / 6.77 95 / 3.74 78 / 3.07 64 / 2.52 M12x75-2
    100x15 / 4x1/4 114x21 / 4.500x0.825 38 / 1.5 178 / 7.01 74 / 2.91 83 / 3.27 69 / 2.72 M12x75-2
    100x20 / 4x3/4 114x27 / 4.500x1.063 38 / 1.5 178 / 7.01 74 / 2.91 83 / 3.27 69 / 2.72 M12x75-2
    100x25 / 4x1 114.3x33.7 4.500x1.315 38 / 1.5 178 / 7.01 74 / 2.91 86 / 3.99 69 / 2.72 M12x75-2
    100x32 / 4x1 1/4 114.3x42.4 / 4.500x1.660 51 / 2.01 178 / 7.01 86 / 3.39 87 / 3,43 69 / 2.72 M12x75-2
    100x40 / 4 x1 1/2 114,3x48.3 4.500 X1.900 51 / 2.01 178 / 7.01 86 / 3.39 89 / 3.51 69 / 2.72 M12x75-2
    100x50 / 4x2 114.3x60.3 4.500x2.375 64 / 2.52 178 / 7.01 100 / 3.94 94 / 3.7 69 / 2.72 M12x75-2
    100x65 / 4x2 1/2 114.3x76.1 4500x3.000 70 / 2.76 178 / 7.01 106 / 4.17 100 / 3.94 69 / 2.72 M12x75-2
    100x80 / 4x3 114.3x88.9 4.500x3.500 89 / 3.5 178 / 7.01 124 / 4.88 99 / 3.9 69 / 2.72 M12x75-2
    125x25 / 5x1 133.0 x 33 7 5.250x1.315 38 / 1.5 200 / 7.87 74 / 2.91 95 / 3.74 77 / 3.03 M16x85-2
    125x32 / 5x1 1/4 133.0 x 42.4 5.250x1.660 51 / 2.01 200 / 7.87 86 / 3.39 95 / 3.74 77 / 3.03 M16x85-2
    125x40 / 5x1 1/2 133.0x48.3 5.250x1.900 51 / 2.01 200 / 7.87 86 / 3.39 95 / 3.74 77 / 3.03 M16x85-2
    125x50 / 5x2 133.0 x 60.3 5.250x2.375 64 / 2.52 200 / 7.87 100 / 3.94 104 / 4.09 77 / 3.03 M16x85-2
    125x25 / 5x1 139.7x33.7 5.503x1.315 38 / 1.5 213 / 8.39 74 / 2.91 98 / 3.86 81 / 3.19 M16x85-2
    125x32 / 5x1 1/4 139,7x42.4 5.500x1.660 51 / 2.01 213 / 8.39 86 / 3.39 99 / 3.9 81 / 3.19 M16x85-2
    125x40 / 5x1 1/2 139.7x48.3 5.500 x1.900 51 / 2.01 213 / 8.39 86 / 3.39 111 / 4.37 81 / 3.19 M16x85-2
    125x50 / 5x2 133.0 x 60.3 5.250x2.375 64 / 2.52 213 / 8.39 100 / 2.19 106 / 4.17 81 / 3.19 M16x85-2
    125x65 / 5x2 1/2 139.0 x 76.1 / 5.500x3.000 70 / 2.76 213 / 8.39 108 / 4.25 110 / 4.33 81 / 3.19 M16x85-2
    150x25 / 6x1 165.1x33.7 / 6.500x1.315 38 / 1.5 239 / 9.41 74 / 2.91 112 / 4.41 95 / 3.74 M16x 105-2
    150x32 / 6x1 1/4 165.1x42.4 / 6.500x1.660 51 / 2.01 239 / 9.41 86 / 3.39 113 / 4.45 95 / 3.74 M16x 105-2
    150x40 / 6x1 1/2 165.1x48.3 / 6.500x1.900 51 / 2.01 239 / 9.41 86 / 3.39 115 / 4.53 95 / 3.74 M16x 105-2
    150x50 / 6x2 165.1x60.3 / 6.500x2.375 64 / 2.52 239 / 9.41 100 / 3.94 120 / 4.72 95 / 3.74 M16x 105-2
    150x65 / 6x2 1/2 165.1x76.1 / 6.500x3.000 70 / 2.76 239 / 9.41 108 / 4.25 124 / 4.68 95 / 3.74 M16x105-2
    150x80 / 6x3 165.1x88.9 / 6.500x3.500 89 / 3.5 239 / 9.41 126 / 4.96 123 / 4.84 95 / 3.74 M16x 105-2
    150x25 / 6x1 168.3 x 33.7 / 6.625x1.315 38 / 1.5 255 / 10.04 74 / 2.91 115 / 4.53 96 / 3.78 M16x105 2
    150x32 / 6x1 1/4 168.3x42.4 / 6.625x1.660 51 / 2.01 255 / 10.04 88 / 3.64 115 / 4.53 96 / 3.78 M16x 105-2
    150x40 / 6x1 1/2 168.3 x 48.3 6.625x1.900 51 / 2.01 255 / 10.04 88 / 3.64 115 / 4.53 96 / 3.78 M16x 105-2
    150x50 / 6x2 168.3x60.3 6.625x2.375 64 / 2.52 255 / 10.04 102 / 4.02 120 / 4.72 96 / 3.78 M16x 105-2
    150x65 / 6x2 1/2 168.3 x 73 6.625x3.000 70 / 2.76 255 / 10.04 108 / 4.25 122 / 4.80 96 / 3.78 M16x 105-2
    150x80 / 6x3 168.3 x 88.9 / 6.625x3.500 89 / 3.5 255 / 10.04 124 / 4.88 122 / 4.80 96 / 3.78 M16x 105-2
    200x25 / 8x1 219.1 x 33.7 / 8.625x3.315 38 / 1.5 310 / 12.21 73 / 2.87 135.5 / 5.35 115 / 4.53 M20x 115-2
    200x32 / 8x1 1/4 219.1 x42.4 / 8.625x1.660 51 / 2.01 310 / 12.21 82 / 3.23 135.5 / 5.35 115 / 4.53 M20x 115-2
    200x40 / 8x1 1/2 219.1 x48.3 / 8.625x1.900 51 / 2.01 310 / 12.21 86 / 3.39 135.5 / 5.35 115 / 4.53 M20x 115-2
    200x50 / 8x2 219.1 x 33.7 / 8.625x2.375 38 / 1.5 310 / 12.21 97 / 3.82 138 / 5.43 115 / 4.53 M20x 115-2
    200x65 / 8x2 1/2 219.1 x76.1 / 8.625x3.000 70 / 2.76 310 / 12.21 115 / 4.53 138 / 5.43 115 / 4.53 M20x 115-2
